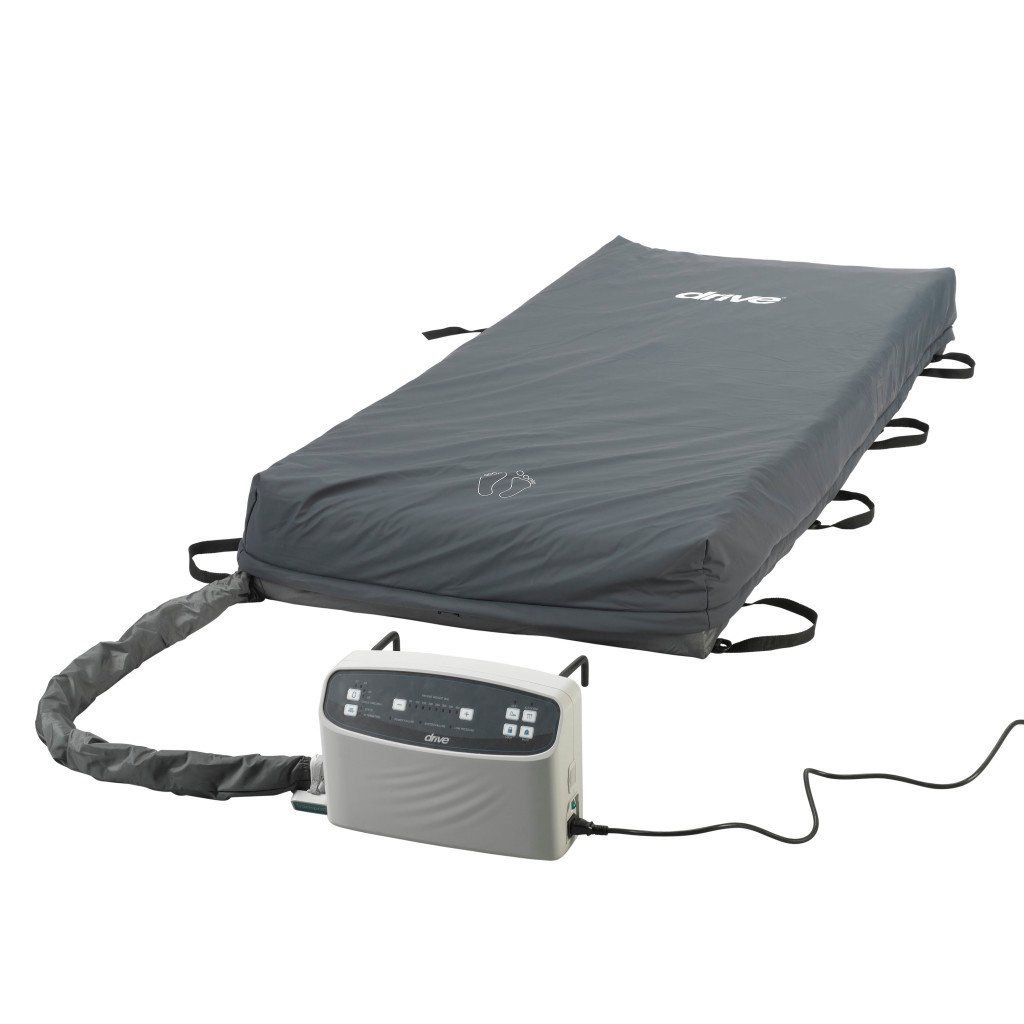

Drive Medical Med-Aire Plus 8 Mattress
The Drive Medical Med-Aire Plus 8 Mattress is an active therapeutic support surface combining alternating-pressure and low-air-loss technologies. Designed for home-care and long-term-care environments, the system is intended to support pressure redistribution while also helping manage friction, shear and the microclimate surrounding the user.
This standard configuration measures approximately 36″ wide x 80″ long x 8″ high and supports users weighing up to 450 lb.
Alternating Pressure and Low Air Loss
The mattress uses 20 individual air cells to help provide immersion and envelopment. Alternating-pressure operation changes pressure between cells on a programmed cycle, while low-air-loss functionality helps manage the environment between the support surface and the user.
A dedicated pillow feature maintains support around the user’s head.
Digital Control Unit
The digital control unit allows caregivers to select from four cycle times: 10, 15, 20 or 25 minutes. Adjustable comfort and weight settings allow support to be tailored to the individual user.
The system also incorporates Auto-Firm and Seat Inflate functions along with microprocessor feedback and a lock-out function.
Diagnostic Alerts
Three diagnostic audio and visual alarms can notify caregivers of pressure, system or power-related issues.

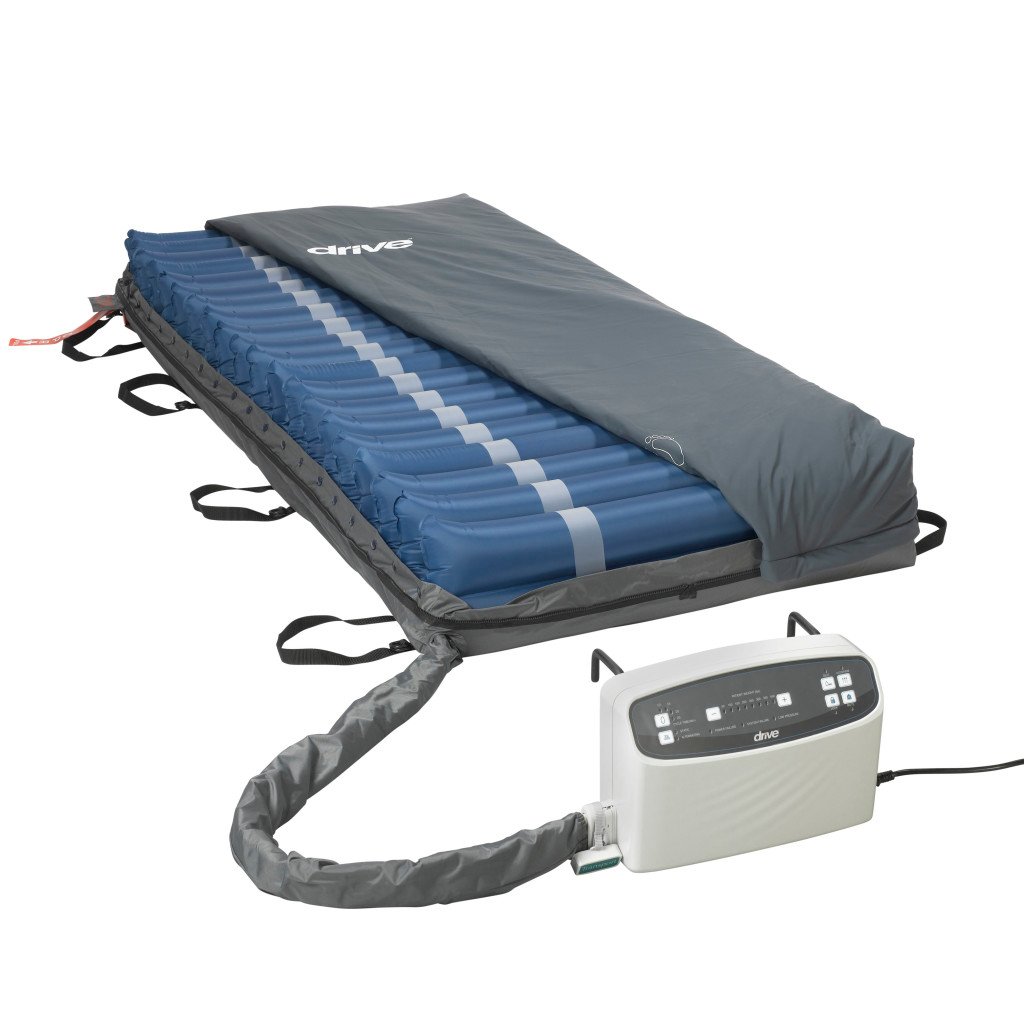

Cell-on-Cell Construction
The 8-inch-deep air cells use a cell-on-cell design intended to reduce the risk of bottoming out. The lower cells can also maintain a degree of support during a power interruption.
Individual air cells can be removed using quick-disconnect fittings for servicing.
Protective Cover
A removable four-way-stretch polyurethane cover is fluid resistant, low shear and vapor permeable. These characteristics help manage moisture and friction around the skin-support interface.
Emergency CPR Valve
A CPR valve allows rapid deflation of the mattress when required. Tubing can also be quickly disconnected using an EZ Lock / Quick Release connection.
Key Features
- Alternating-pressure therapy
- Low-air-loss therapy
- 20 individual air cells
- 8″ support surface
- 450 lb weight capacity
- Four selectable cycle times
- Adjustable comfort settings
- Audio and visual alarms
- Auto-Firm
- Seat Inflate
- Cell-on-cell design
- Fluid-resistant stretch cover
- CPR valve
- Quick-release tubing
Specifications
- Item: 14029
- UPC: 822383110820
- Dimensions: 36″ W x 80″ L x 8″ H
- Weight Capacity: 450 lb
- Control Unit Airflow: 8 LPM
- Alarm Type: Visual / Audible
- Cycle Times: 10, 15, 20 and 25 minutes
- Control Unit: Compressor
- Cover: Fluid-resistant stretch material
- Warranty: 18 Month Limited
For current availability and information about therapeutic hospital-bed support surfaces, contact Motion Care Mobility Inc.
